Summary
CTPlus 3.1.74503 introduces a new "Where used" tab to the Areas, Inputs and Relays dialogs. This tab will become an indication of where the selected area, input, or relay is used.
Current limitations
At this stage this feature should be considered an indication only - as it may not show all usages where the area, input or relay is used. Relays especially are currently limited in not showing all locations where they may be used.
This feature will be improved in upcoming versions of CTPlus.
Example of "Where used" working:
The example below shows a relay assigned to a soft time zone:

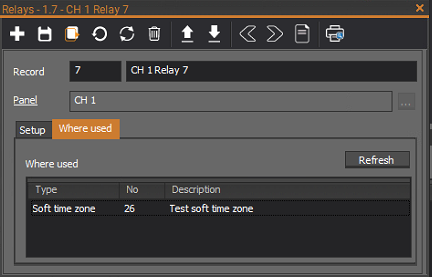

Now on the "Where used" tab of the relay, you can see that this relay is assigned to the soft time zone:
Example of "Where used" not showing the usage:

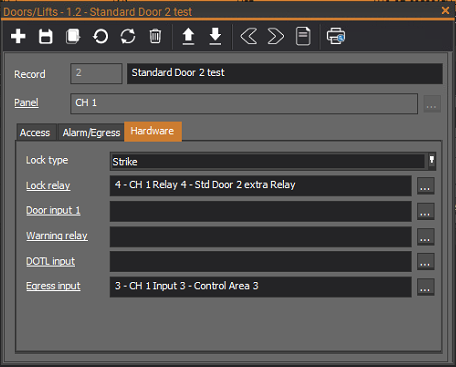

The example below shows a relay that is assigned as the Lock relay of a Standard Door:

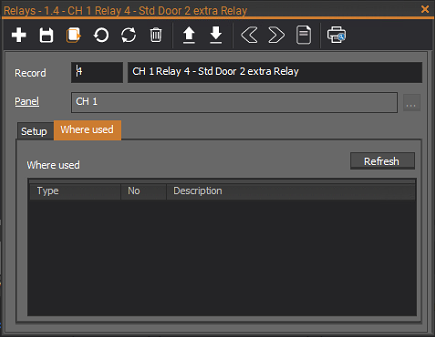

However, when viewing the usage, the relay does not appear in the "Where used" tab:
Please note that this will be improved in upcoming versions of CTPlus.
