Summary
This article covers an example of settings to configure a Discovery panel to communicate with a Permaconn unit over the serial port on the Discovery.
To achieve this, you will also need a J15 style serial connector to connect to the Discovery panel's Serial output.
Example settings
Example settings for this are shown below.
However note that you may wish to vary some settings depending on your specific scenario.

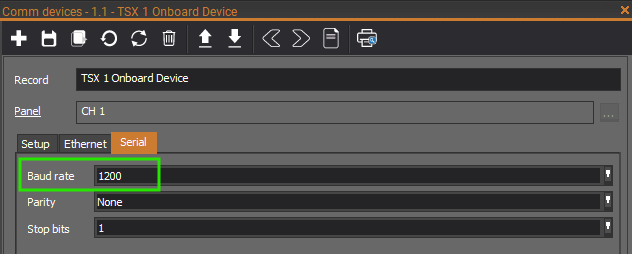

Firstly note that it is IMPORTANT that you set the Serial device baud rate in the Discovery panel, and the Permaconn unit to match.
We recommend a baud rate of 1200 for known reliable communications, as follows:

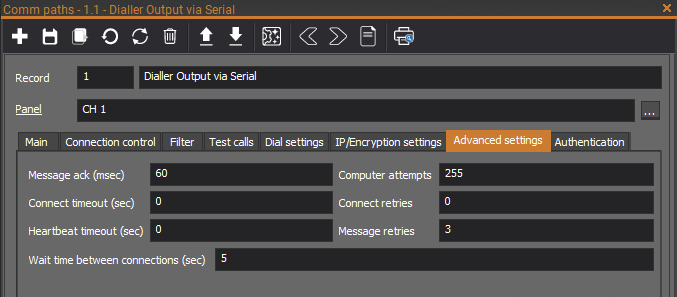

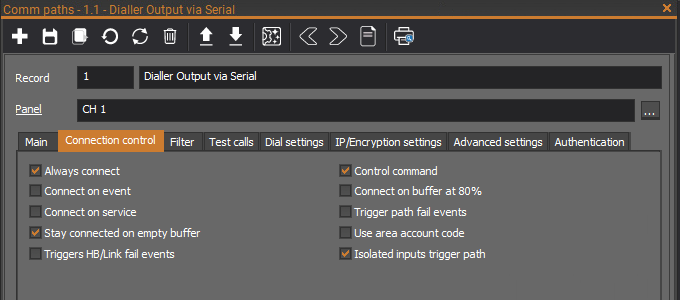

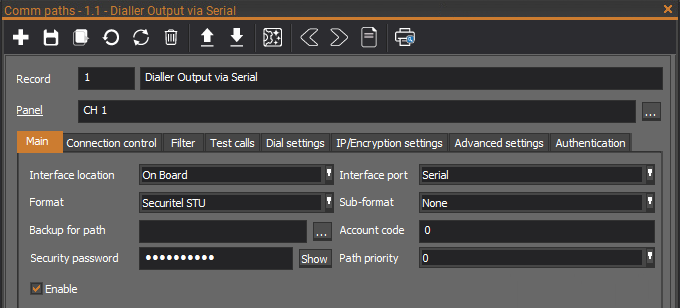

Then a Comms path can be configured as follows (this is an example - customise to your specific needs):
